4E's USA 32-Throughput Nucleic Acid Extraction System - NEW

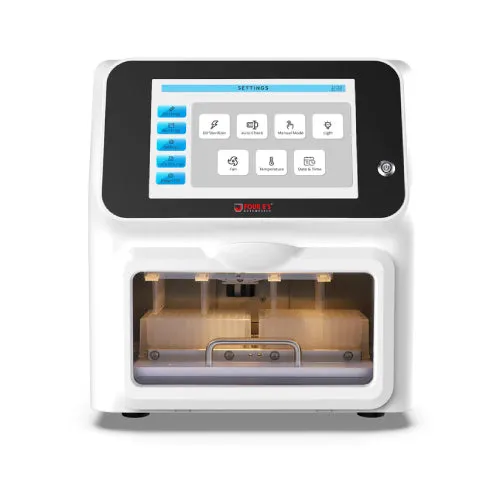

The 4E's USA 32-Throughput Nucleic Acid Extraction System is a high-throughput nucleic acid extractor that uses magnetic bead technology to purify DNA and RNA from a wide range of sample types. The system features a user-friendly interface that allows for easy programming of extraction parameters and the ability to process up to 32 samples in a single run.
Specifications
- Model: MultiEx 032
- Throughput: 1 to 32 samples
- Processing volume: 30-1000ul
- Manufacturer’s warranty
Features
With its advanced magnetic bead technology and multiple heating modules with individual heating controls, the NAE100132 delivers high yields of pure nucleic acid with minimal hands-on time, reducing the risk of contamination and ensuring reliable results. The system is suitable for use in both research and clinical settings, making it an ideal solution for high-throughput nucleic acid extraction needs.
The system includes multiple heating modules with individual temperature control to ensure optimal temperature accuracy during lysis and elution steps. This allows for precise temperature control and eliminates the risk of overheating or underheating during the extraction process, which can lead to degradation of nucleic acid and poor results.

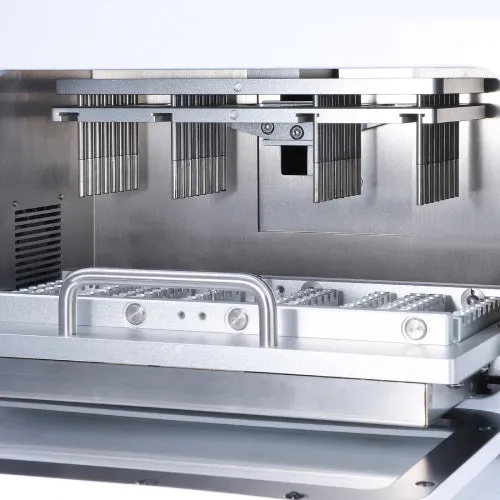

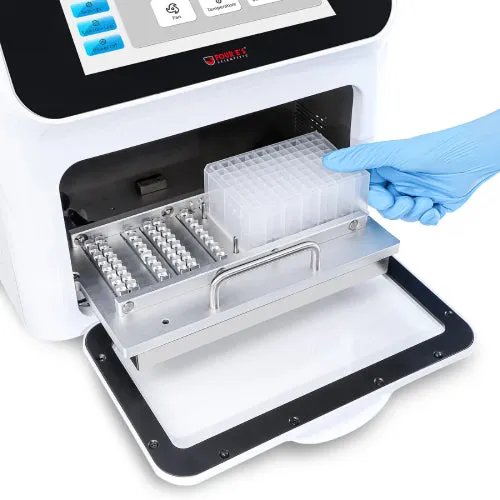

The MultiEX 032 is fully automated, reducing the need for manual intervention and minimizing the risk of contamination. This allows for reliable and reproducible results, even when processing large numbers of samples. The system also has an auto-check function that ensures the correct positioning of the 96-well plate and magnetic rods, further reducing the risk of errors.
The 4E’s USA MultiEX 032 has a small footprint, making it ideal for use in laboratories with limited bench space. The system is also easy to set up and use, requiring minimal maintenance and no special infrastructure or installation. Its compact design and ease of use make it an attractive option for labs with limited resources or space.
32-Throughput Nucleic Acid Extraction System – Additional Specifications
| Throughput | 1-32 Samples |
| Processing Volume | 30-1000ul |
| Plate Quantity | 2 |
| Plate Type | 96-Deep Well Plate (conical/round bottom) |
| Processing Time | 20min-40min/run (depending on reagent types and volumes) |
| Reagent Type | Magnetic bead-based reagent kits (open system) |
| Heating Temperature | Room temperature to ~100℃ |
| Temperature Accuracy | 1.5℃ |
| Magnetic Beads Recovery Rate | 96% |
| Inter-well Purification Variance | CV＜5% |
| Mixing intensities | Adjustable: 5 Levels |
| Data Storage Capacity | >500 programs |
Pictures
The photos above are those found on 4E's USA's website, unless we’ve had one in stock. At that point, we take our own pictures of the equipment for our website before sending them out to the customer. We will provide photos of your actual equipment once it arrives at your request.
For inquiries about the 4E's USA 32-Throughput Nucleic Acid Extraction System, please give us a call at 978-521-2221, or fill out the form on this page.
