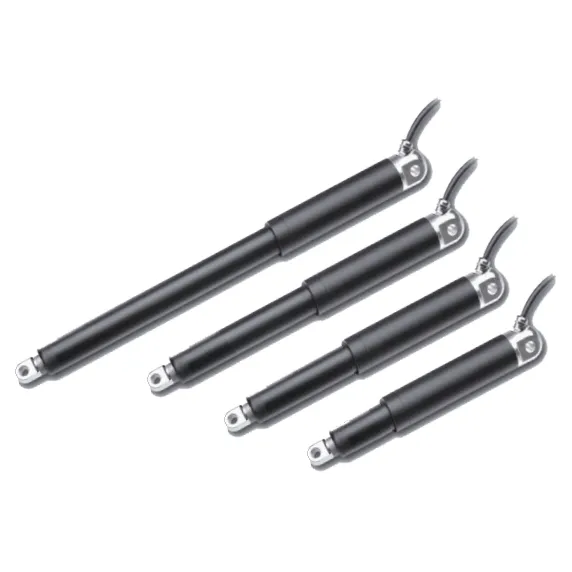

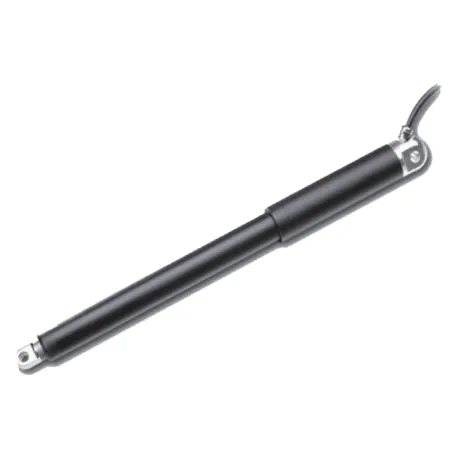

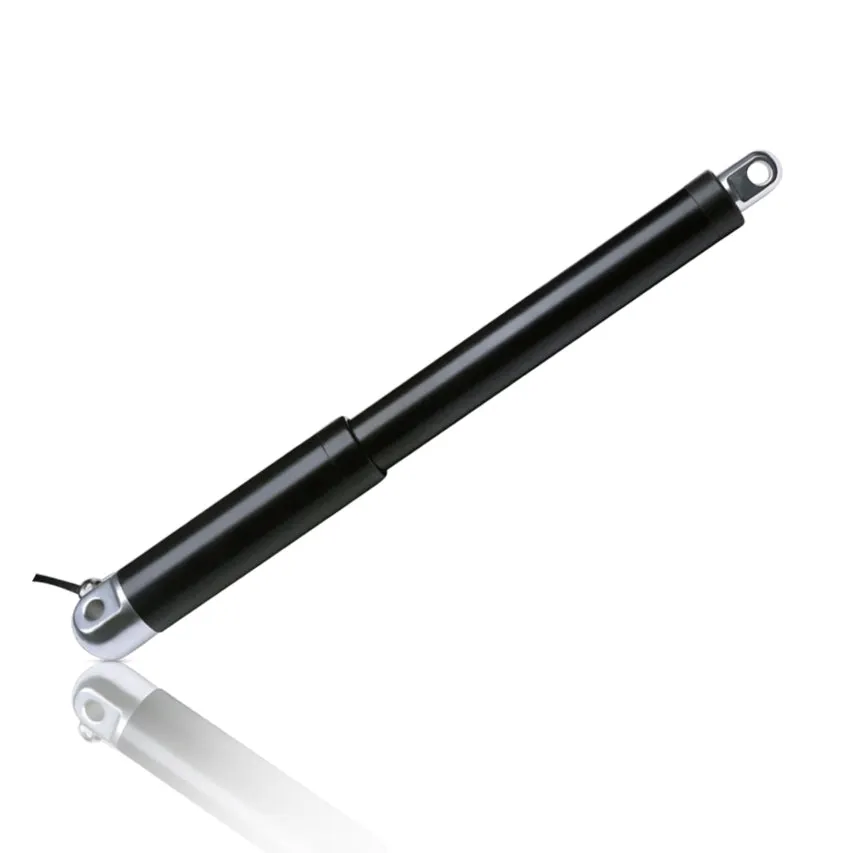

The Bullet Series 35 Cal. Linear Actuator was developed to have a slim in-line motor design. They are light weight and are fitted with high quality Japanese motors to ensure a long life span and low operating noise with an IP62 rating. Ideal for applications such as , ,

These Actuators come with an integrated force sensor, this means if they bump into something or when they get to the end of their stroke they automatically stop moving until you either change direction or remove the load. This is a better method for end of stroke limit switching and means that this model does not need internal limit switches - For adjustable limit-switch linear actuators try our new .  The built-in over-current protection system is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control where space is tight.

For further information review the specifications and technical drawings down below or visit our  for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

Accessories sold separately include:  -  -  -

Specifications

Curve Graphs

Wiring Diagram

Click here to view our wiring diagram generator to help you set up your actuator system

3D Model Downloads (.STEP)

Same files apply to all Force models

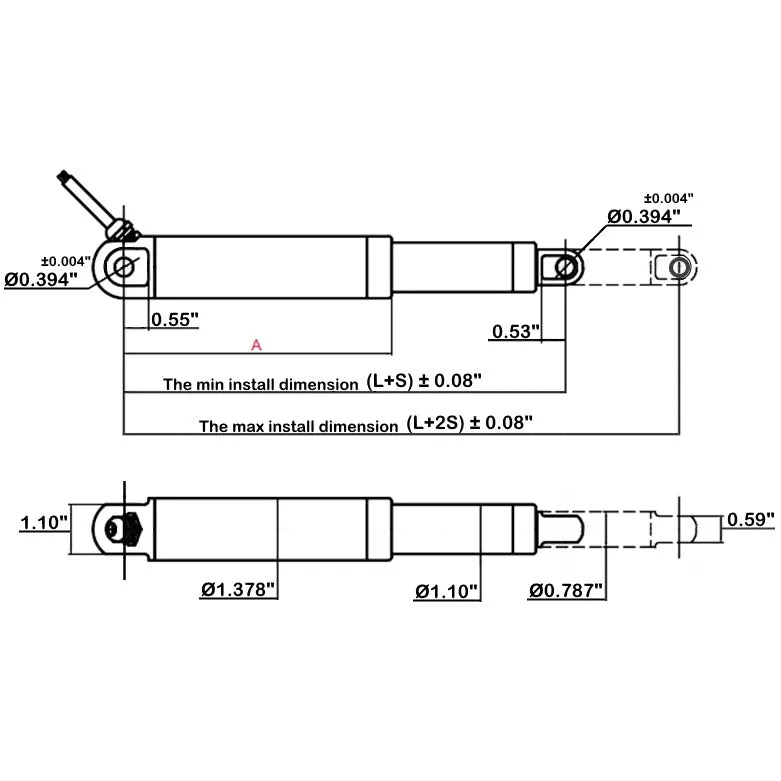

Actuator Dimensions

Click on each image to get the PDF dimensions sheet. All SKU's are below. All force variants are the same.
