Features

• 3-Stage intelligent PWM charging: Bulk, Boost/Equalize, Float.
• Support 3 charging options: Sealed, Gel, and Flooded.
• Battery status LED indicator can indicate battery situation.
• Battery temperature compensation function.
• With humanized settings, operation will be more comfortable and convenient.
• The USB will provide power supply that can charge for electronic equipment (LS EU series only).
• Battery type and load output can be set via button.
• Extensive Electronic protection.

Protections

• Battery Over Voltage Protection.
• Battery Over Discharge Protection.
• Load Overload Protection.
• Load Short Circuit Protection.

Technical Specifications

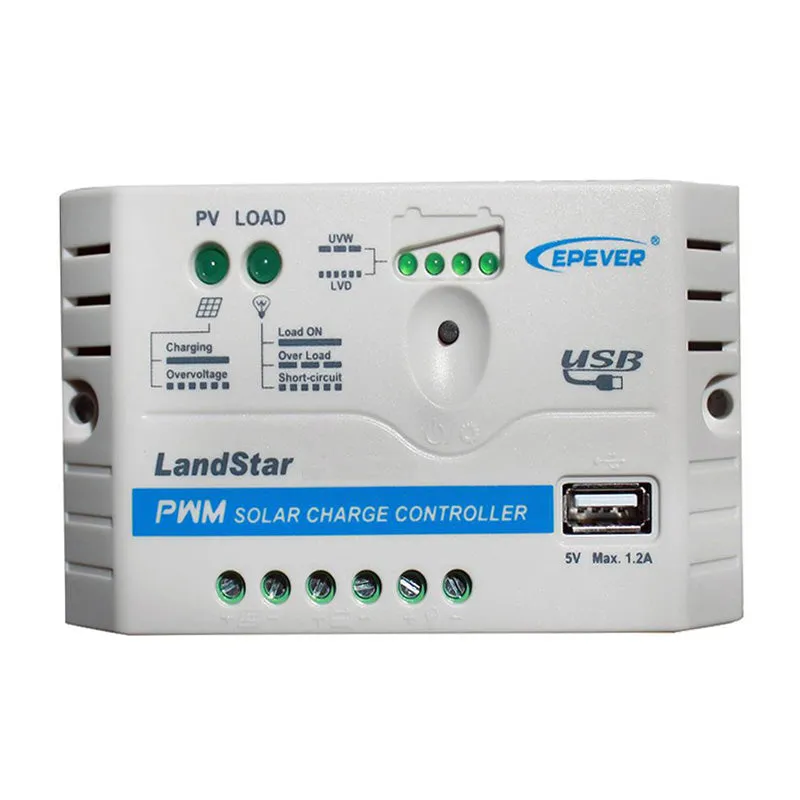

• Model: LS3024EU.
• Nominal system voltage: 12V/24V Auto.
• Rated charge current: 30A.
• Rated discharge current: 30A.
• Battery input voltage range: 8~32V.
• Max. PV open circuit voltage: 50V.
• Equalize charging voltage: Gel: ----, Sealed: 14.6V, Flooded: 14.8V.
• Boost charging voltage: Gel: 14.2V, sealed: 14.4V, Flooded: 14.6V.
• Float charging voltage: Gel / Sealed / Flooded:13.8V.
• Low voltage reconnect voltage: Gel / Sealed / Flooded:12.6V.
• Low voltage disconnect voltage: Gel / Sealed / Flooded:11.1V.
• USB output port: 5VDC/2A.
• Charge circuit voltage drop: ≤0.13V.
• Discharge circuit voltage drop: ≤0.17V.
• Self-consumption: ≤5mA(12V); ≤7mA (24V)
• Temp. compensation: -5mV/℃/2V.
• Enclosure: IP20.
• Grounding: Common Positive.
• Overall dimensions (mm): 148 * 106.8 * 43.7.
• Mounting dimension: 138mm.
• Mounting hole size: Φ4.5.
• Terminals: 10AWG /6mm².
• Net weight: 0.18kg.
• Working temperature: -35℃～ 55℃.
• Humidity: ≤95% N.C.
