The Hexagonal M3 PCB Column with Male and Female Threaded Pillar Bolt Screws is a key component in electronic assemblies and PCB (Printed Circuit Board) applications. Its hexagonal shape, combined with male and female threaded ends and specific dimensions, provides mechanical support, spacing, and connection points crucial for ensuring stability and reliability in electronic systems.

Features:

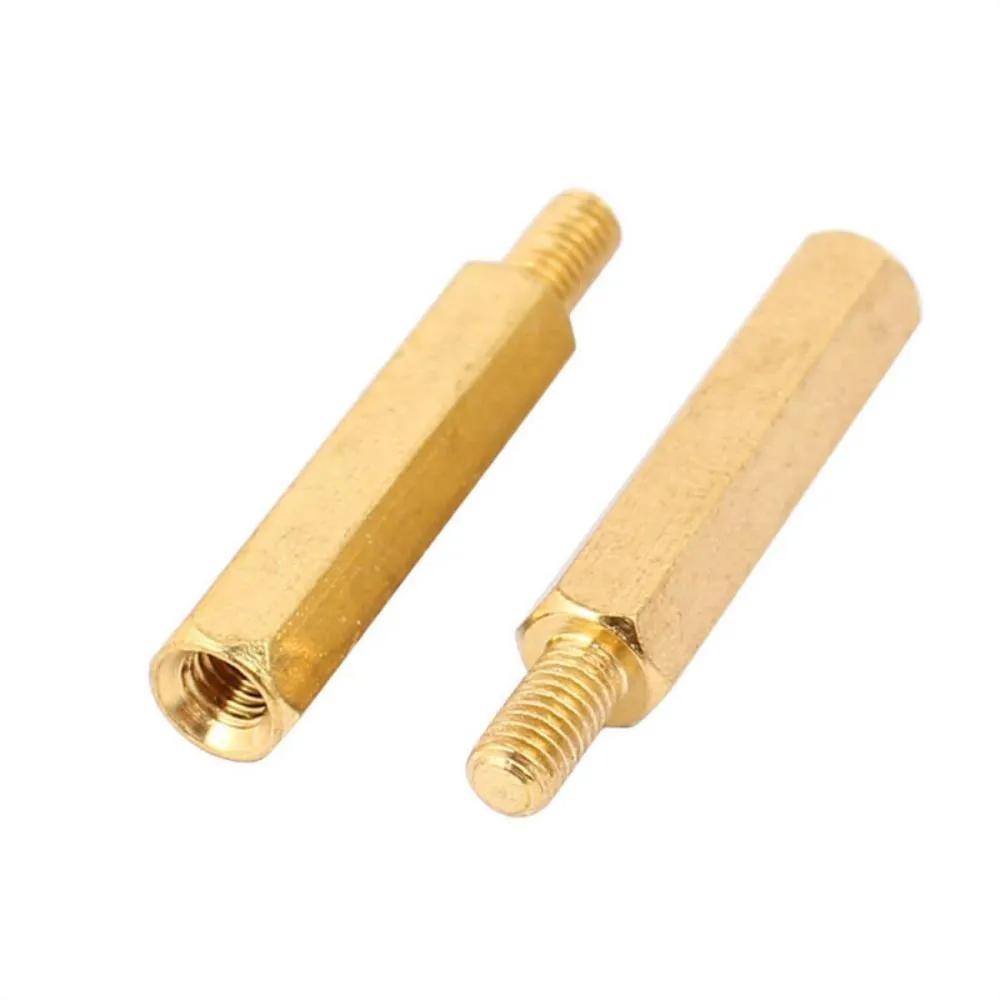

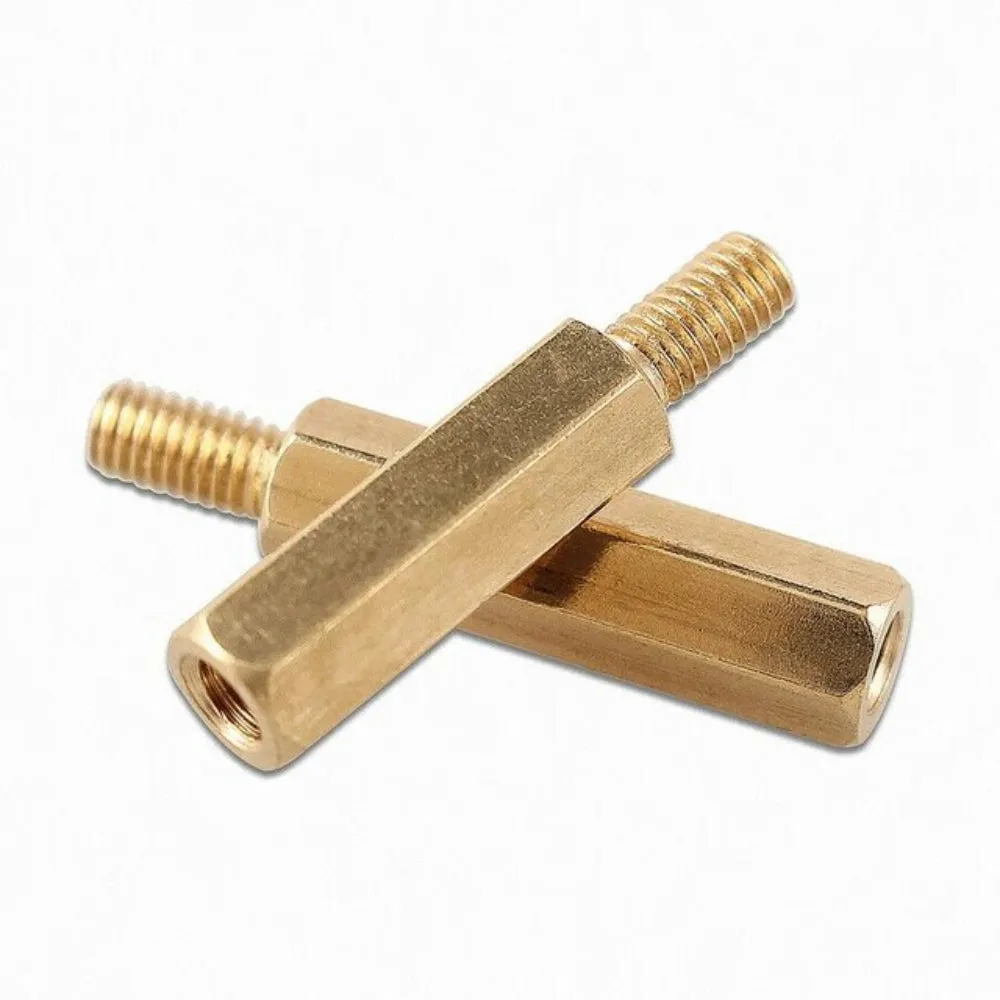

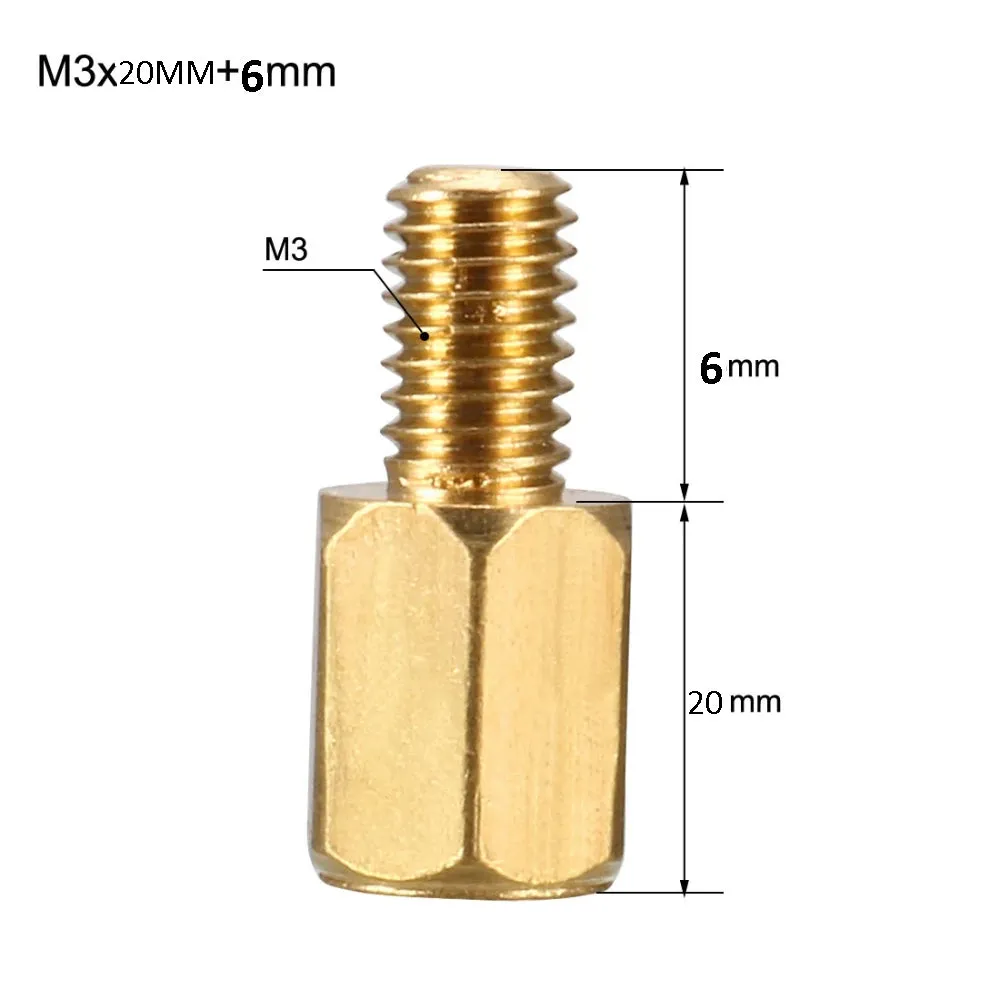

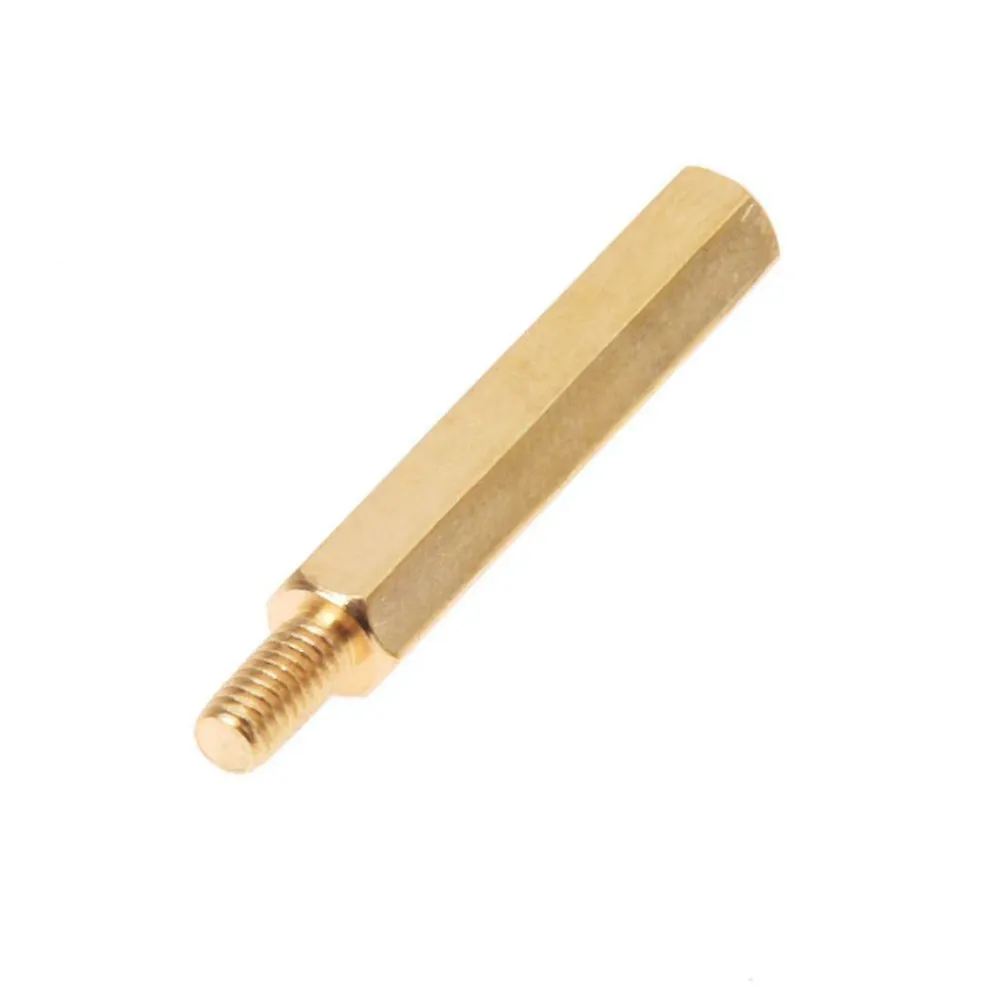

Name: Hexagonal M3 PCB Column Male Female Threaded Pillar Bolt Screws Hexagonal Pillar length 20mm Thread length 6mm
SKU: 2231846

Hexagonal Shape: The column's hexagonal shape facilitates easy handling, gripping, and alignment during installation, ensuring secure attachment and precise positioning within electronic assemblies.

M3 Size Compatibility: Designed to accommodate M3 (Metric 3) threaded bolts and screws, the column ensures compatibility with standard fasteners commonly used in electronic applications, simplifying assembly and maintenance processes.

Male and Female Threaded Ends: Featuring both male and female threaded ends, the column offers versatility in creating connections, securing components, and adjusting heights within electronic assemblies, providing flexibility in design and construction.

Hexagonal Pillar Length: With a hexagonal pillar length of 20mm, the column provides substantial spacing and support between PCB layers, electronic components, or modules, promoting efficient airflow and thermal management.

Thread Length: The threaded portion of the column has a length of 6mm, allowing for secure attachment and fastening with nuts, bolts, or standoffs, ensuring robust mechanical connections and structural integrity in electronic systems.

Durable Construction: Constructed from durable materials such as brass, stainless steel, or nylon, the PCB column offers strength, corrosion resistance, and long-term reliability, suitable for diverse environmental conditions and applications.

Easy Installation: The column's threaded design and standard M3 size facilitate easy installation and removal, enabling efficient assembly, disassembly, and customization of electronic projects and systems.

Applications:

PCB Mounting: Used in PCB assemblies to provide mechanical support, spacing, and alignment between circuit boards, components, and chassis, ensuring stable and reliable operation of electronic devices.

Component Mounting: Employed for mounting electronic components, connectors, switches, and modules onto PCBs, promoting secure connections, organization, and accessibility in electronic assemblies.

Features

Versatile and easy to fit.
Lock PCB securely into place.
The hexagonal design allows tightening with a wrench.
The brass metal itself provides good resistance to oxidation and corrosion.
Brass also provides mechanical strength and good resistance to temperature environments.
Brass Metal standoffs also keep good electrical conductivity when looking to maintain a circuit.
