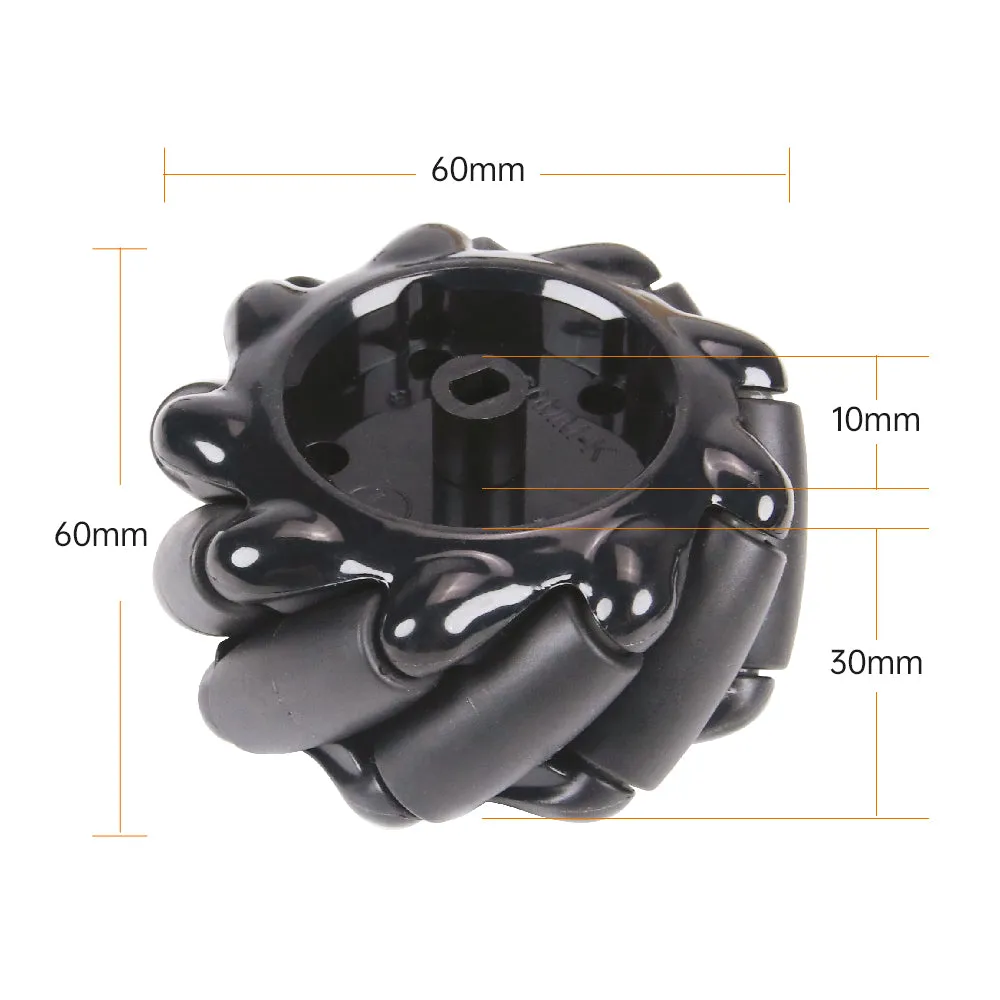

Mecanum Wheels
The mecanum wheel has compact structure and flexible movement. Assembling the trolley with four wheels can allow the trolley to achieve full lateral movement more flexibly and conveniently.
Aluminum Alloy Material
The trolley chassis is made of hard aluminum alloy, which is strong and durable.

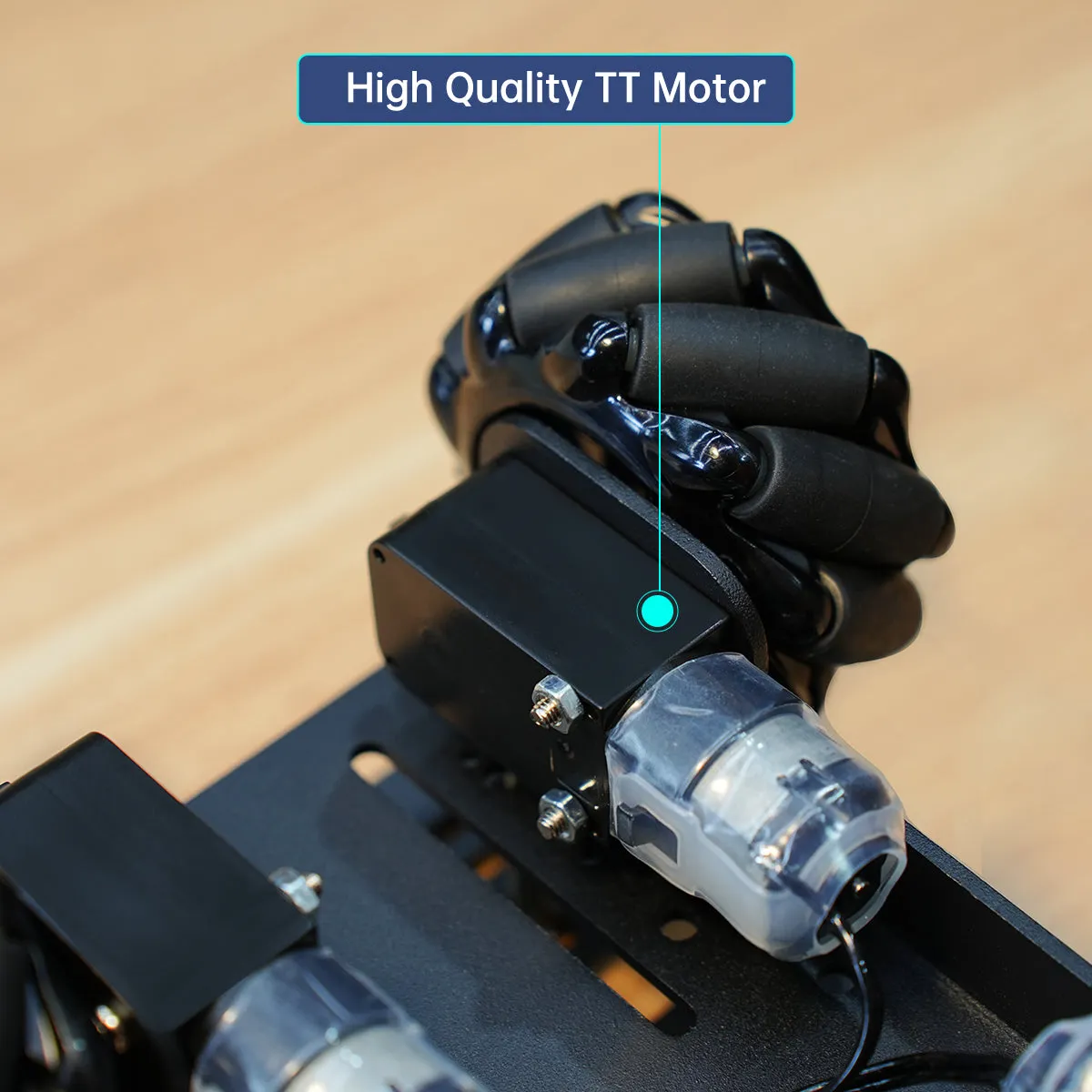

High-quality TT Motor

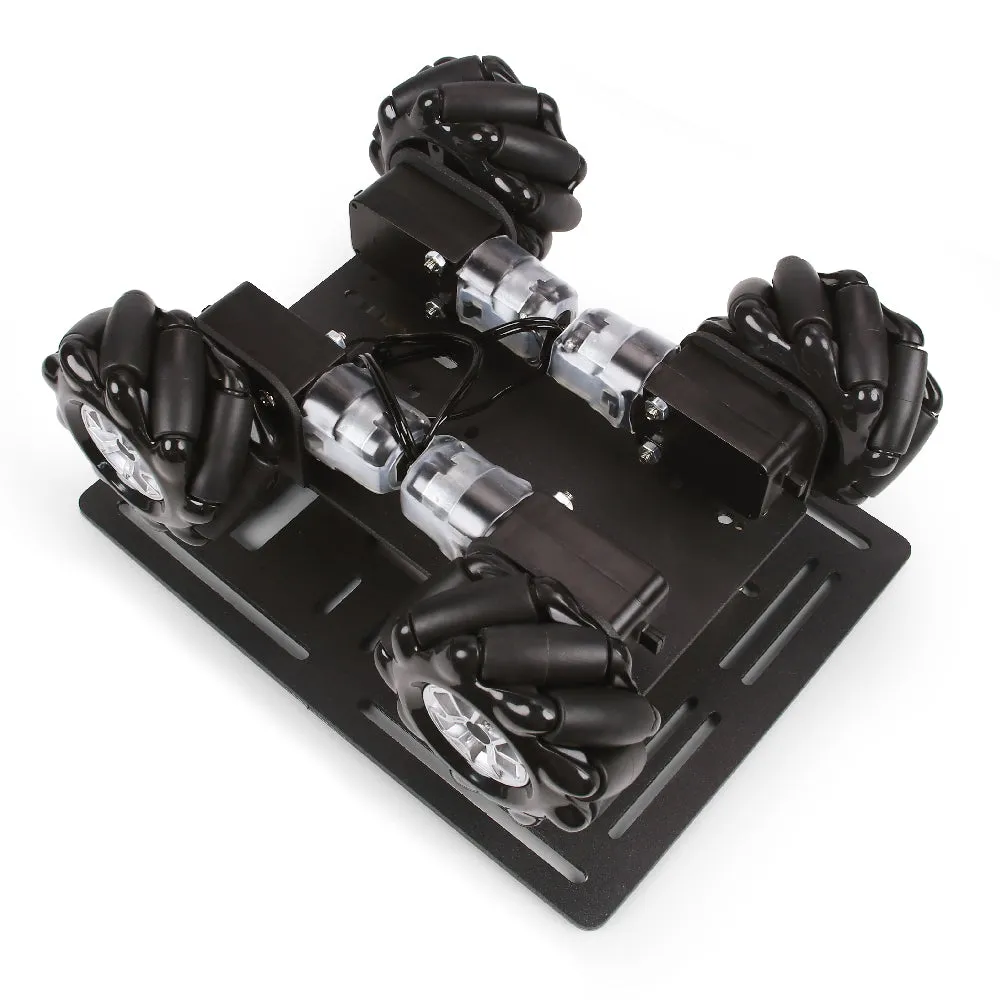

The chassis is equipped with four high-quality carbon brush motors with strong magnetism, high strength and anti-interference.

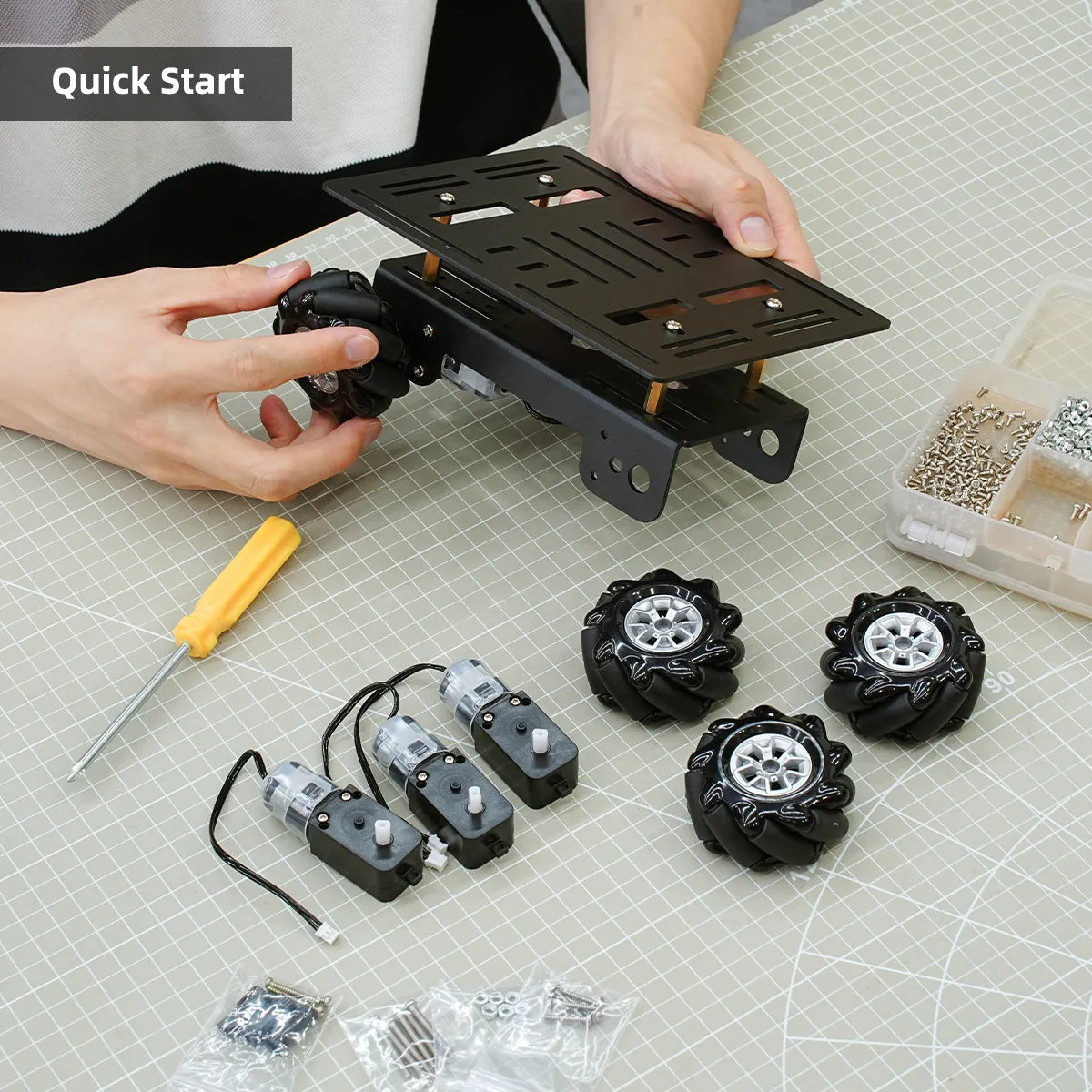

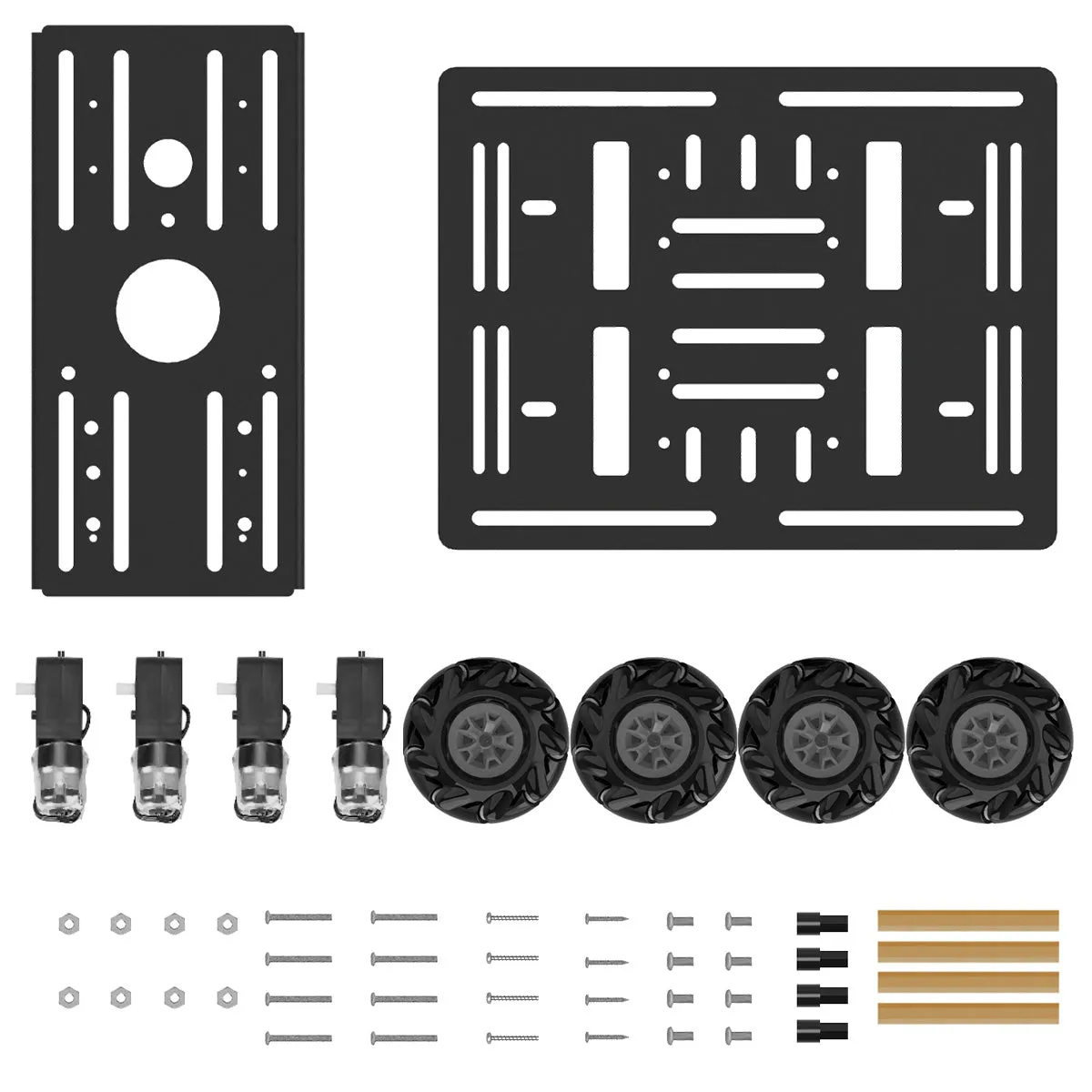

Product List
4WD Car Chassis*1
Extension bracket*1
Mecanum wheels*4
TT motor*4
TT motor coupling*4
M4*32 copper pillar*4
M2.3*16 tapping screw*4
Round head cross machine teeth*4
M3 nut*8
M4*8 round head machine screw*8
M3*25 round head machine screw*8
Parameter
- Product weight: 0.5kg
- Motor voltage: 3V-6V

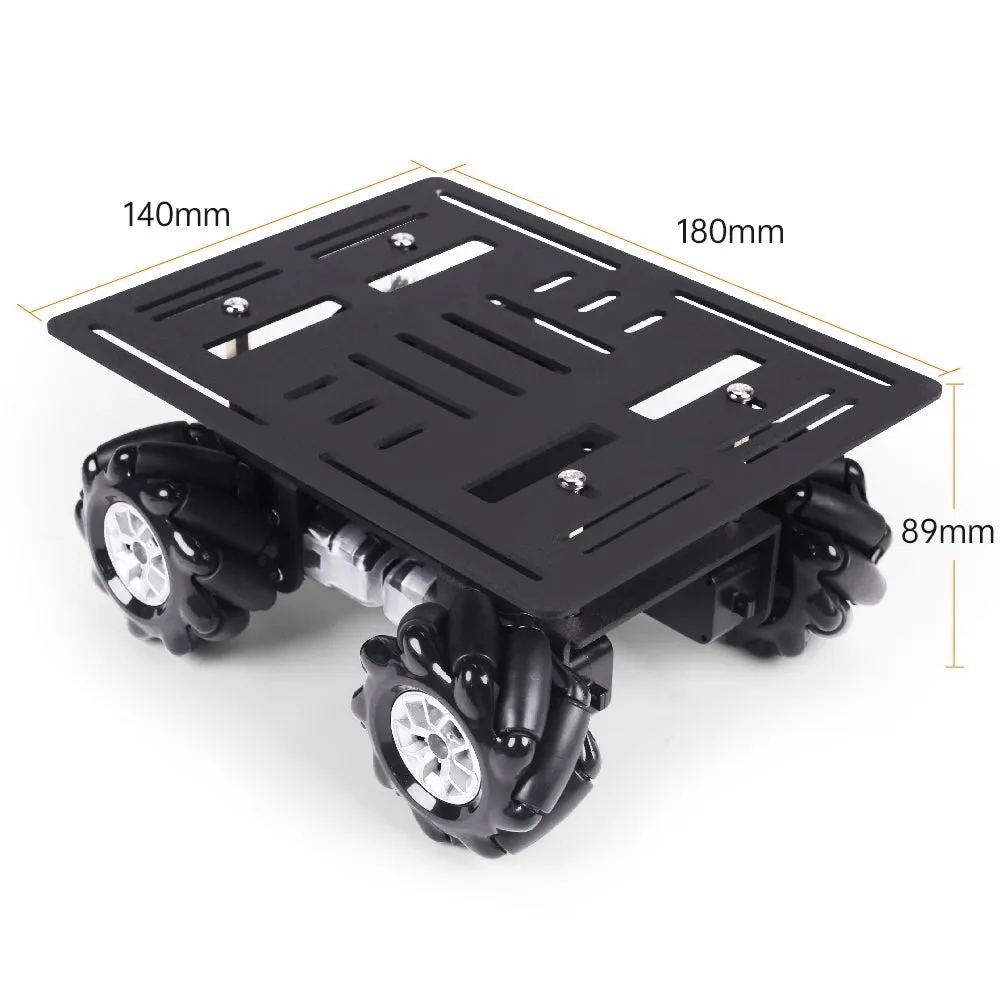

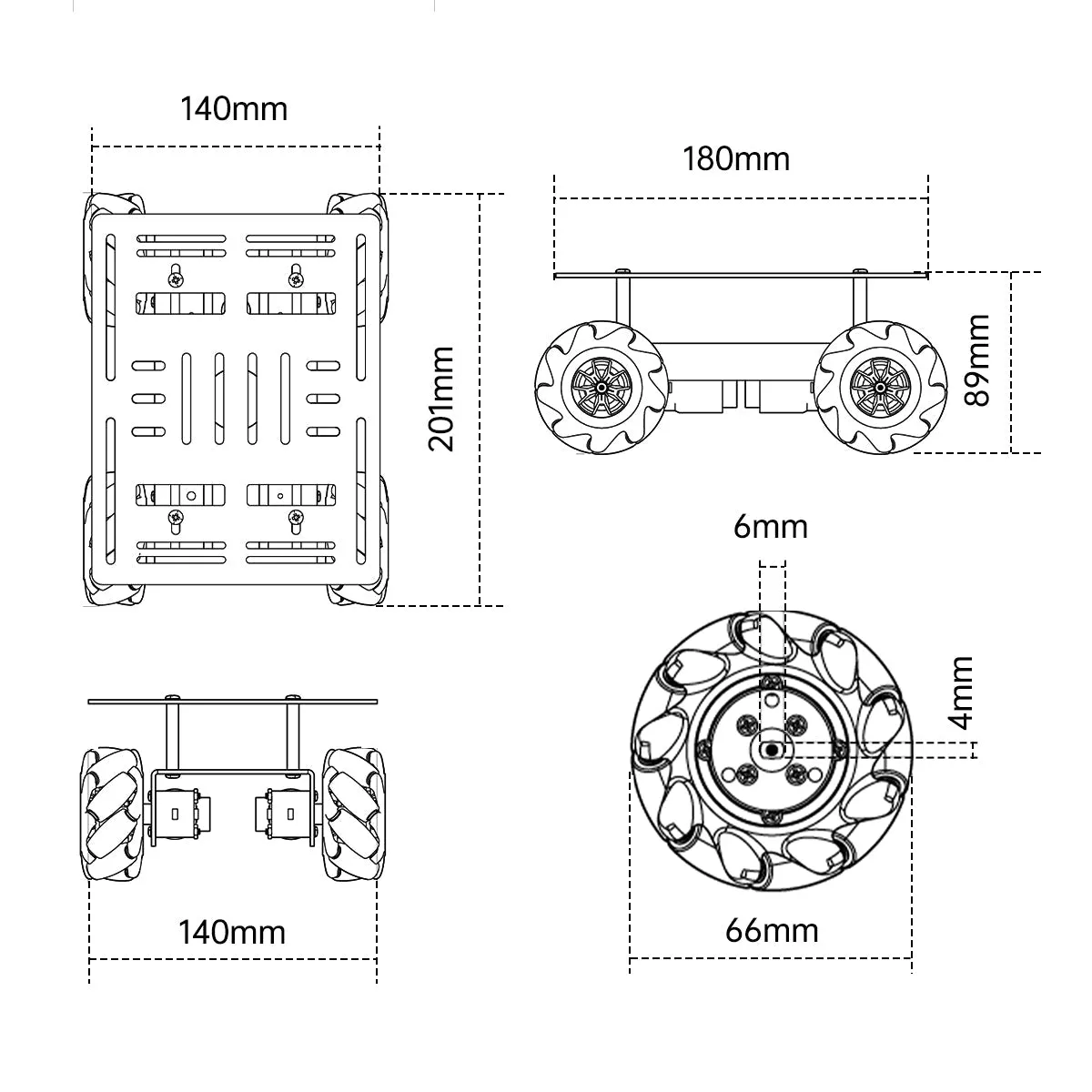

- Product size: 180*140*89mm
- Motor ratio: 1:120
- Chassis material: Aluminum alloy
- Tire diameter: 66mm
- Tire material: Engineering plastics

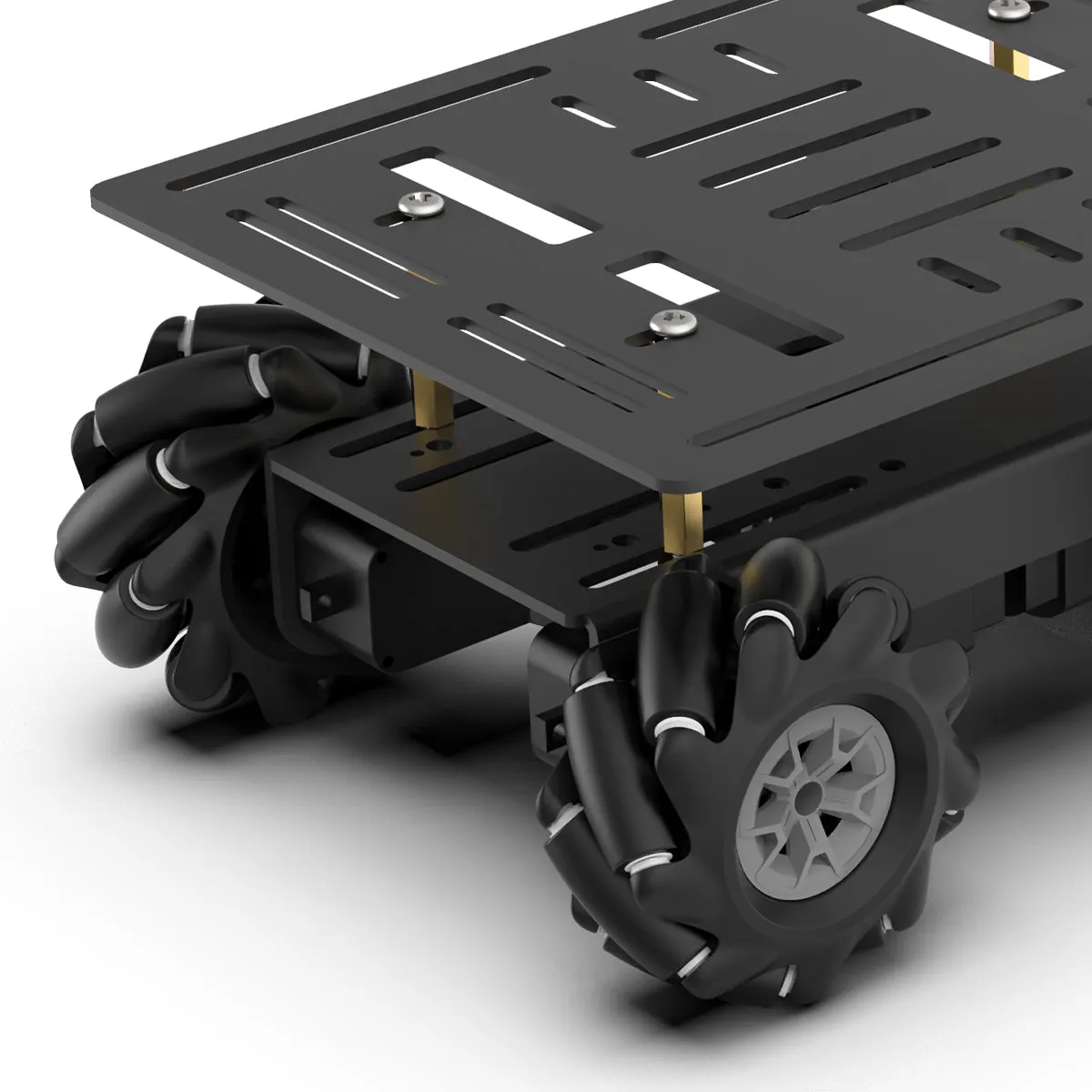

Reserved Expansion Holes
The body has a large number installation holes, which is convenient for users to expand.

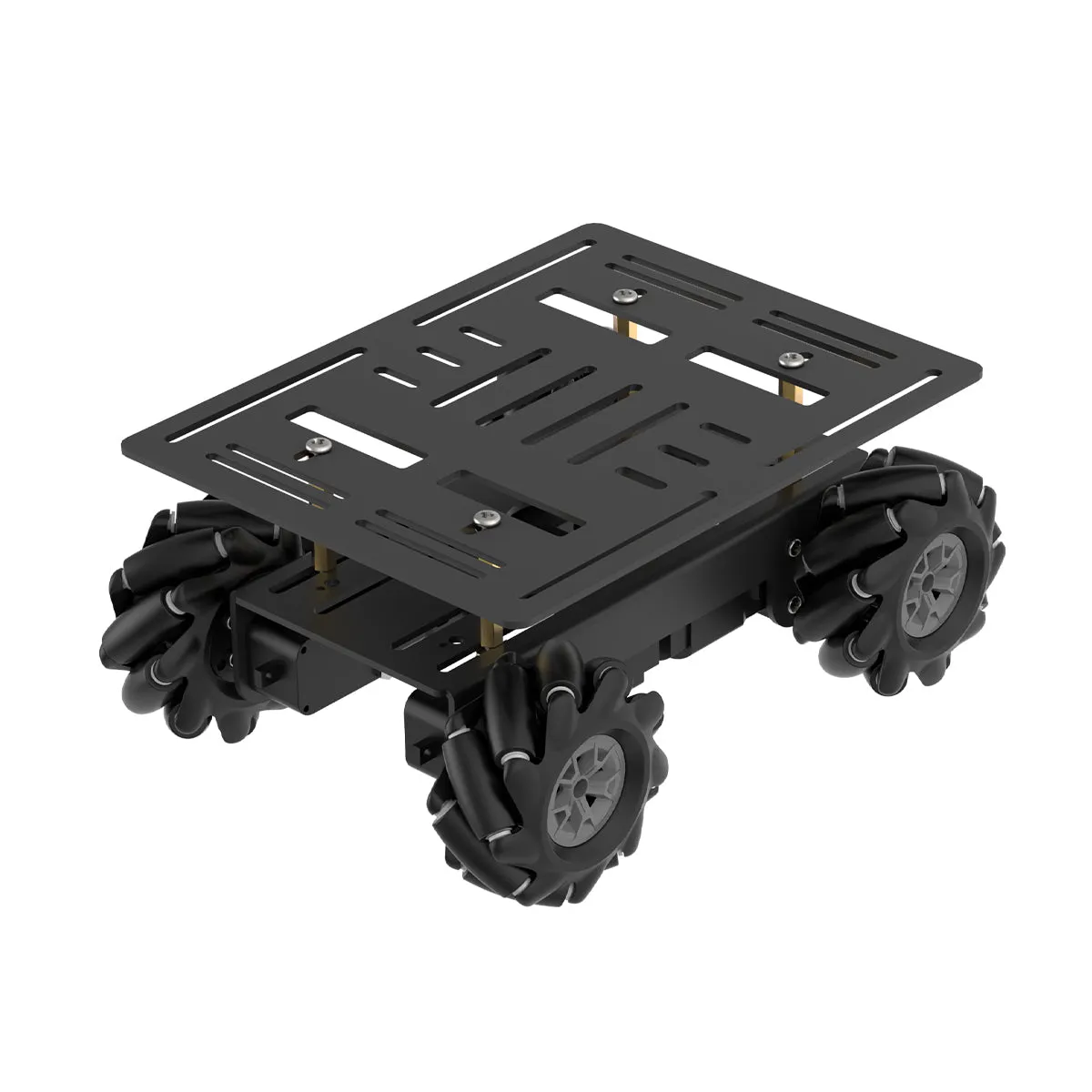

Double Layer Design
The chassis has double layers of space, which can be disassembled freely, and can easily install controllers, sensors, cameras, batteries and other external devices.

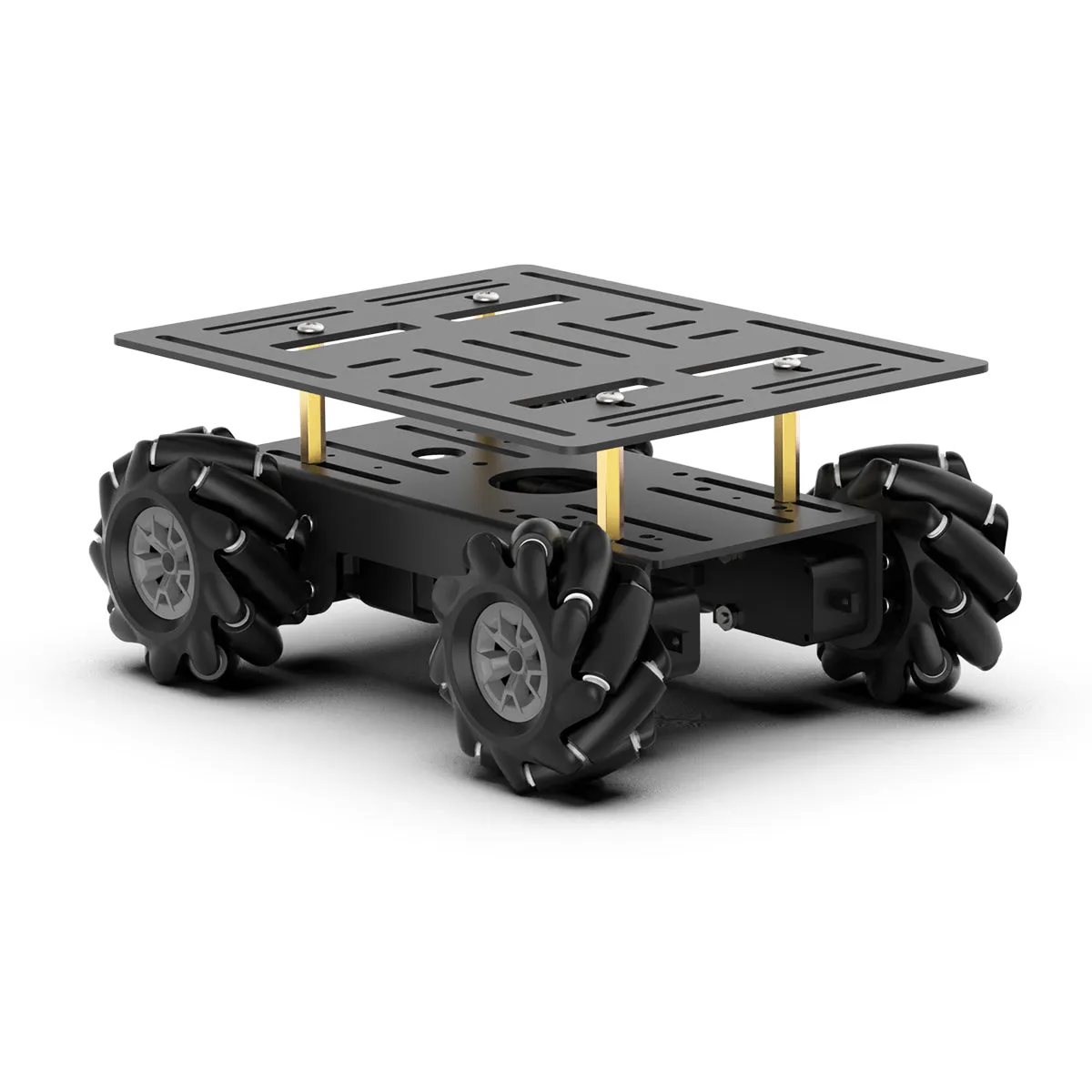

360° Omnidirectional Movement
The trolley chassis is equipped with four omnidirectional mecanum wheels, which can move 360°. Different motion modes (forward, horizontal, oblique, rotational) and excellent performance allow you to boldly challenge various complex routes.
Specifications
| Item | Specification |
| Product weight | 0.5kg |
| Motor voltage | 3V-6V |
| Product size | 180*140*89mm |
| Motor ratio | 1:120 |
| Chassis material | Aluminum alloy |
| Tire diameter | 66mm |
| Tire material | Engineering plastics |
| Product List | 4WD Car Chassis*1 Extension bracket*1 Mecanum wheels*4 TT motor*4 TT motor coupling*4 M4*32 copper pillar*4 M2.3*16 tapping screw*4 Round head cross machine teeth*4 M3 nut*8 M4*8 round head machine screw*8 M3*25 round head machine screw*8 |
| Package weight | 0.7kg |
| Package size | 240*160*60mm |
