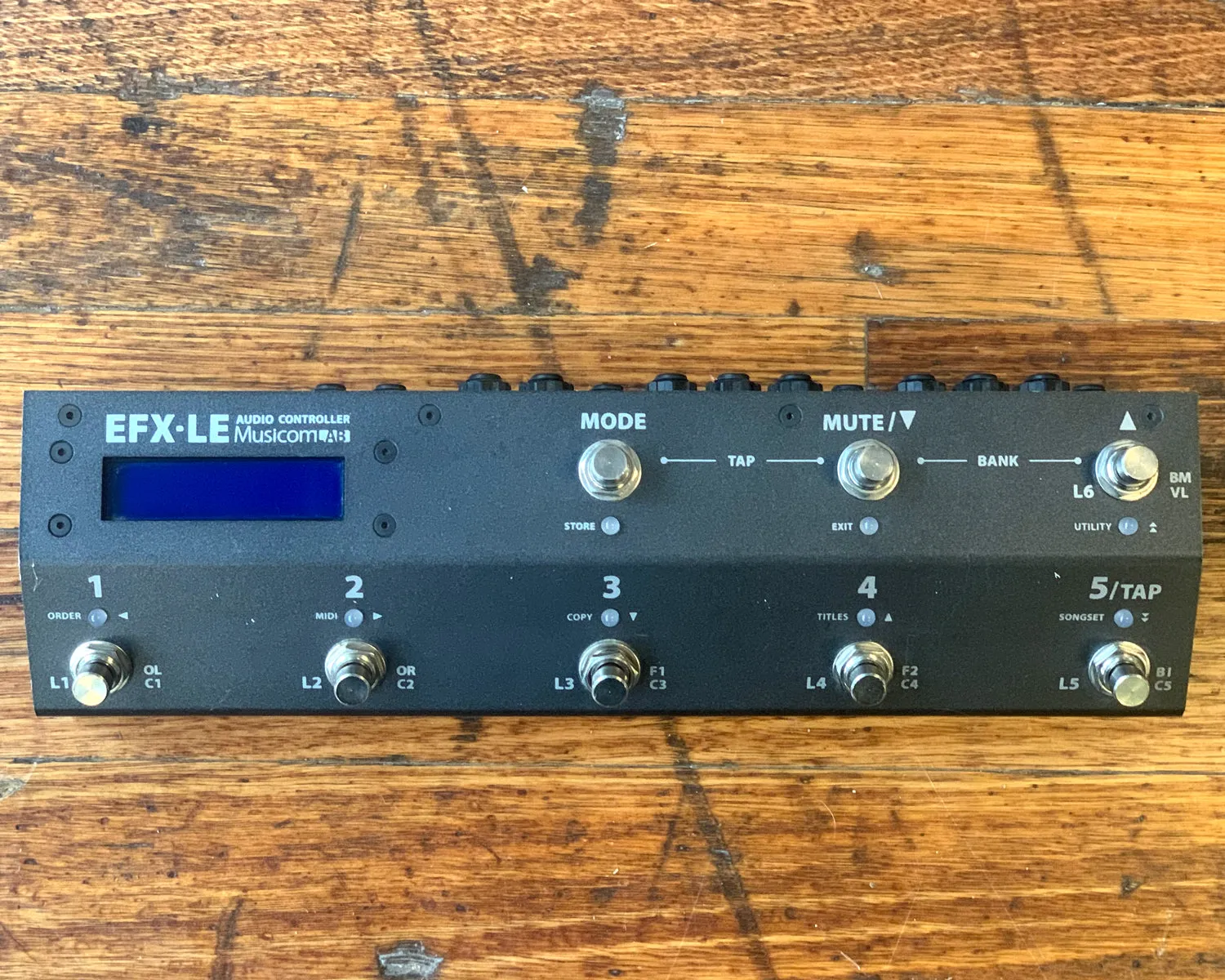

FX Loop / Controller for easy pedalboard routing solutions featuring:

• 4 mono loops and 2 stereo loops, plus 1 volume loop
• Changeable loop order per each preset
• 2 Buffers, Input and Movable buffers
• 2 internal unity mixers (Mixer or Spill Over)
• 361 preset memory locations
• 72 banks of 5 presets, plus a Global Preset
• 2 function control switches (Latched / Momentary)
• Mute and Click-Less functions
• Song and Set mode
• Create up to 99 songs
• Organized the 99 songs in to 40 sets of 40 songs
• 8 MIDI Program and 8 MIDI Control Change messages
• Each MIDI message can be stored in each preset
• 18 MIDI Control Change messages by assigned IA switches
• MIDI Time Clock or Alaog Tempo out for TAP-TEMPO
• One expression pedal port (global / per preset)
• 2 lines x 16 characters LCD display with blue backlight
• Easily copy presets, banks, songs and sets
• Easily name presets and songs
• Heavy-duty footswitches and gold-plated relays
• Powered by 12VDC(center negative) 250mA

Velcro on base.

Product Specs

• Item Number: 23688
• Make:
• Model:
• Condition:
• Finish: Grey
• Categories: ⇒ ⇒
• Made In: Korea, Republic of
• MPN: 23688
