Features:

• SMB-6000C  12-slot Desktop Chassis can be daisy-chained together to achieve large scale testing
• SMB-6000C  12-slot Desktop Chassis holds up to twelve modules
• Supports up to 96 10/100 Ethernet ports, 48 Gigabit Ethernet ports, 6 10GbE ports, 24 POS ports, 24 Fibre Channel ports, or a combination of these port types
• Bundled with three PC-based software applications for comprehensive stress testing
• performance tests defined in RFC 1242 and RFC 2544. Supports a 10/100 Mbps Ethernet or Telnet connection to the host PC
• Provides GPS (Global Positioning System), NTP (Network Timing Protocol), and CDMA (Code Division Multiple Access) TIA/EIA–95B, external timing reference support
• Supports multi-user operation

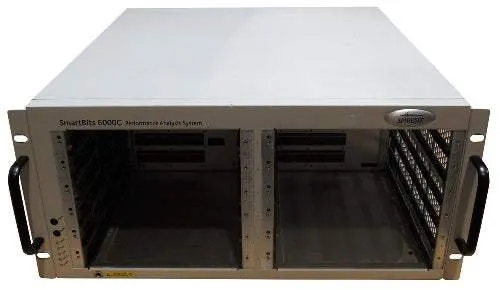

Spirent SmartBits SMB-6000C 12-slot Desktop Chassis is the industry’s highest-port-density network performance analysis test system.

Each chassis can support up to 12 slots of a wide variety of test modules to suit port density and technology needs.

SmartBits SMB-6000C can be interconnected to achieve ultra high-port density, enabling users to perform auto-mated large scale testing in Quality Control and high-volume production environments.

Up to 8 chassis can be synchronously connected together using a simple cable; this can be extended up to 512 chassis using  multi-chassis extension units.

Spirent SmartBits SMB-6000C 12-slot Desktop Chassis is easily controlled by a host computer through a 10/100 Mbps Ethernet connection and uses a Windows®, Linux, or Solaris-based interface.
