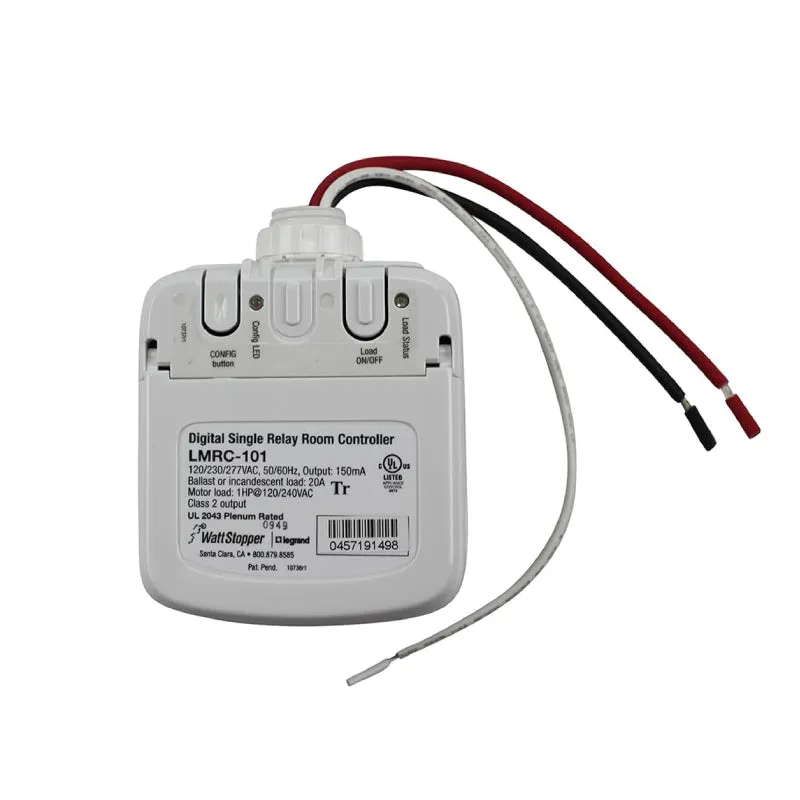

LMRC-100 Series Digital Room Controllers include one or two relay(s) for on/off control of a total of 20 amps, and a high-efficiency switching power supply.

Features

• Voltage: Single Phase 120/230/240/277VAC; 50/60Hz

• Number of Connectors: 1

• Plenum-rated controllers with line voltage relay(s) and switching power supply

• Components of Digital Lighting Management integrated control systems
• Plug to other components using Cat 5e cables with RJ45 connectors eliminating wiring errors
• Plug n’ Go automatic configuration for maximum energy efficiency
• Support energy saving manual-on and bi-level lighting control strategies
• LMRC-100 Series Room Controllers include a 1/2” (12.7mm) threaded nipple and locking ring

Dimensions

• Length: 4"
• Width: 3"
• Height: 2"
